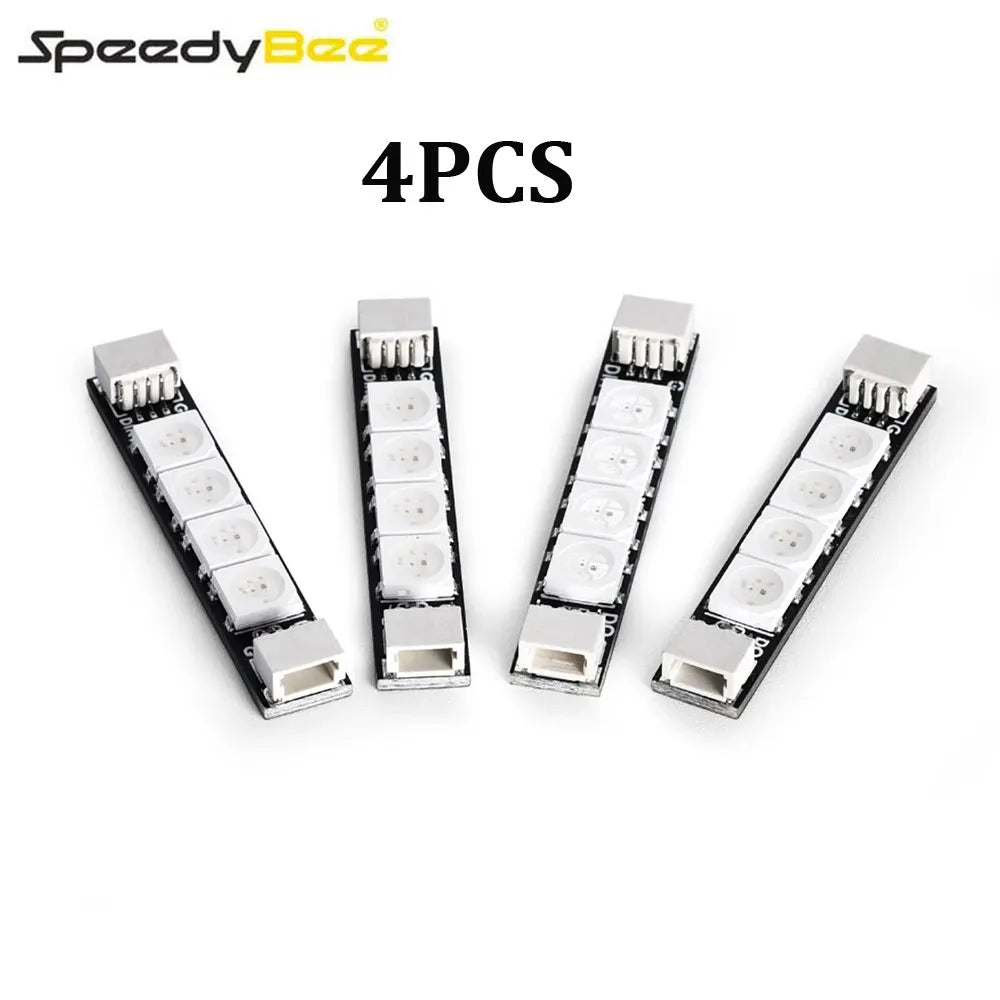

4PCS SpeedyBee Programable 2812 Arm LED Light Armlight 5V RGB For RC FPV Racing Freestyle Whoop Drone Quadcopter Runcam

Item: SpeedyBee 2812 RGB Arm Light Strips Programmable 4 Lamp Beads LED Board

Parameters:

Item name:LED light strip

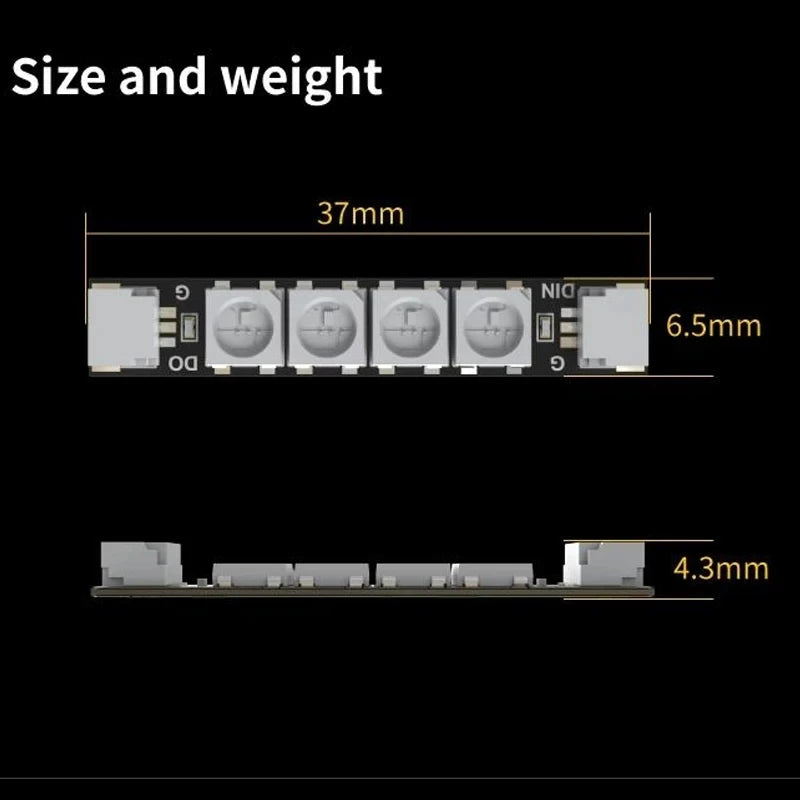

Size:37mm x 6.5mm x 4.3mm

Cable length:50mm

Heat shrink tube length:35mm

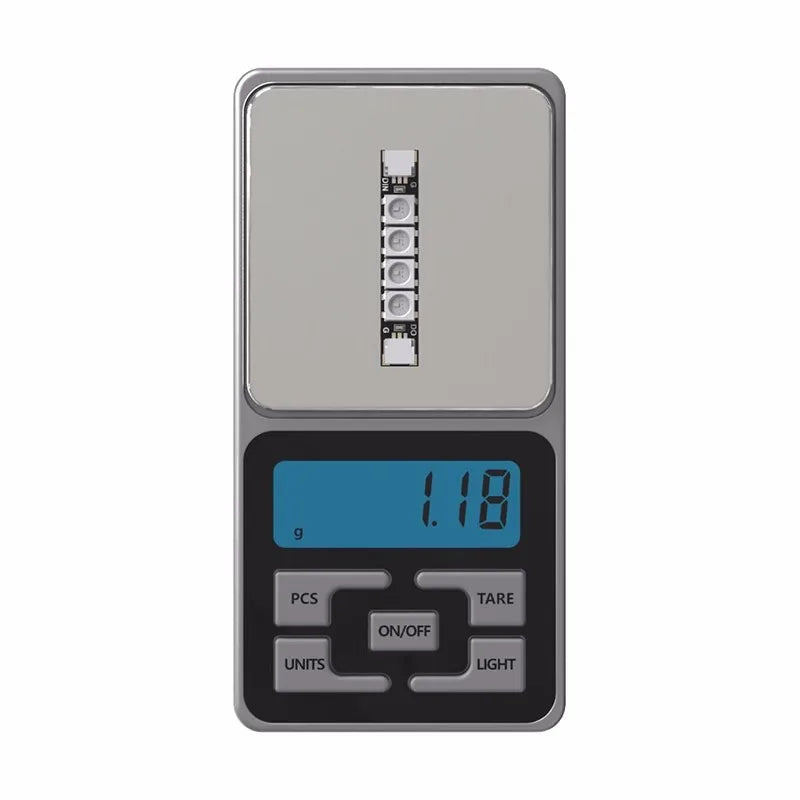

Weight:about 1.2g/pcs(only light strip)

Used for FPV drone arm

Photoelectric Parameters:

Light intensity(IV):(test conditions:IF=12mA)

R: 200-400mcd

G: 800-1000mcd

B: 200-400mcd

Half-intensity viewing angle(201/2): 120deg(test conditions:IF=12mA)

Dominant wavelength(λD):(test conditions:IF=12mA)

R: 620-625nm

G: 525-530nm

B: 465-470nm

Reverse current(IR): maximum to 1uA((test conditions:VR=7V)

Brightness Binning:(test conditions:IF=12mA)

Red(code K07): 200-400mcd

Green(code K30):800-1000mcd

Blue(code K07): 200-400mcd

Color Temperature Binning:(test conditions:IF=12mA)

Red(code R0): 620-625nm

Green(code G13):525-530nm

Blue(code PB12): 465-470nm

Support welding and welding-free multi-stage series connection.

(Supports up to 8 levels of series connection, Betaflight currently only supports 32 lamp beads.)

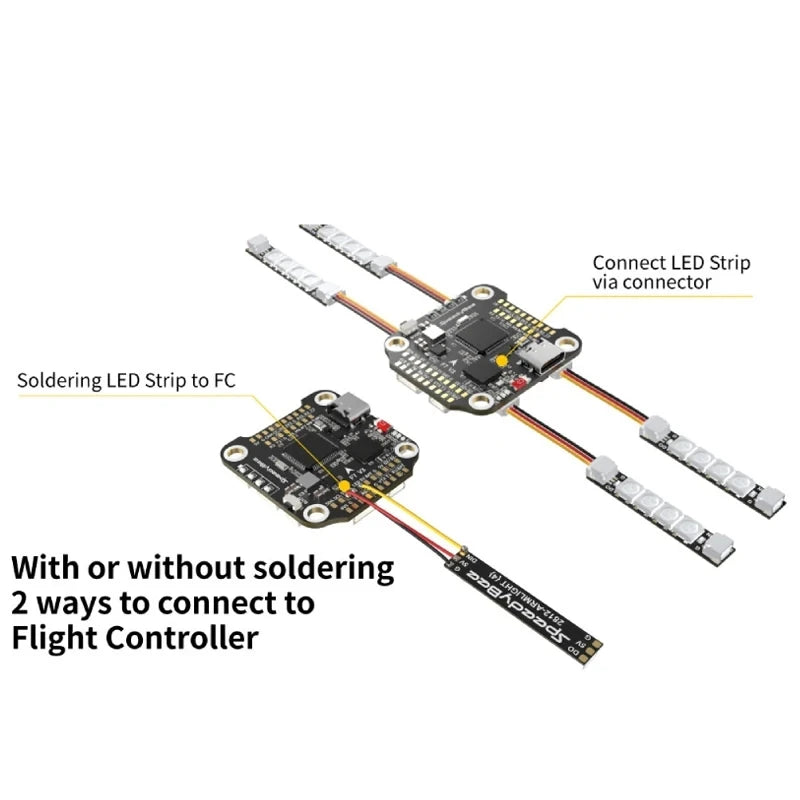

Support welding and welding-free connection to the flight controller.

(Direct welding of flight controllers and light strips.

The flight controller and the light strip seat are inserted directly without welding.)

Note:

1.The flight controller and drone will not include.

2.Due to manual measurement the size may have slightly deviation.

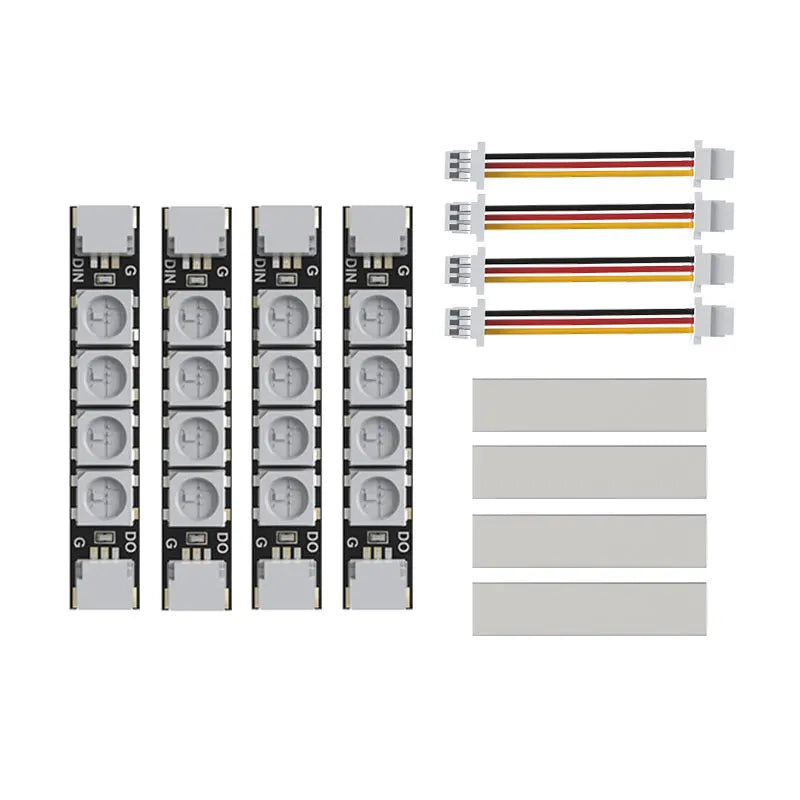

Package Included:

4pcs light strips + 4pcs cables + 4pcs heat shrink tubes
